This page aims to explain the theory behind the trailer balance spreadsheet (see Part 5) so that you can understand how it all works.
You can safely skip Parts 1 - 4 if all the theory looks too scary for you!
Part 1
Deciding the objectiveThis page does not aim to tell you what your objective for the balance of your trailer should be - this advice can be found in many places on the Internet and is the subject of endless discussion.
Perhaps the most common advice is that the hitch (or tongue) weight should be 10-15% of the total trailer weight, although some sources quote 10-14% and others quote 8-12%. Alternatively, you may want to stay within a hitch weight restriction on your tow vehicle of, perhaps, 200lb.
What this page does is to show you how to design your trailer to achieve the objective you have selected.
A badly balanced trailer is Dangerous!
Part 2
Estimating Weight DistributionCentre of Gravity
Firstly, centre of gravity - you need to understand what this is. If you don't understand it already, here is a basic explanation:
|
The centre of gravity is the point around which an object will balance. You will instinctively know where this is for simple uniform objects - right in the middle.

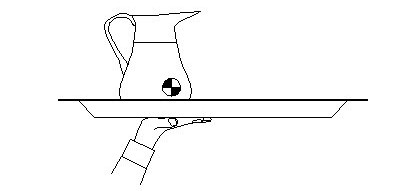

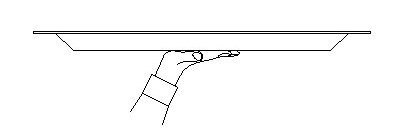

If you pick up an empty tray using just one hand underneath, like a real Italian waiter in a Venice café, you instinctively know to put your hand in the middle so that it balances - and it balances because you are putting your hand under the centre of gravity. |
 |
|
 |
Now if you add a jug of water on one end of the tray, you instinctively know that you need to put your hand nearer the jug end of the tray, if the tray is to balance - again, because you are putting your hand under the centre of gravity.
In this case it is the centre of gravity of the tray-and-jug combined that you instinctively select - near the middle of the heavy jug, but offset a little toward the middle of the lighter tray.
So it turns out that you already know all about centres of gravity. Well done! |
|
It is customary to show the position of the centre of gravity by the black-and-white symbol on the jug in the diagram above - and, no, that's not a BMW logo. 'Centre of gravity' is often abbreviated to CoG, and if you see or hear the term 'centre of mass', that's the same thing.
The centre of gravity is actually a point in space - it has a longitudinal, a transverse and a vertical position. But when looking at trailer balance, we are mostly interested in where the centre of gravity is positioned along the length of the trailer (the 'longitudinal centre of gravity', or LCG) and that is what is described in the rest of this page.
Weight Distribution
In order to estimate the centre of gravity of a trailer we haven’t yet built, we have to estimate two things:
- the weight of each part of the trailer, and
- the centre of gravity of each part of the trailer.
There are two things to notice here - firstly, each part has a centre of gravity (just like the whole trailer has a centre of gravity). Secondly, we estimate the whole by estimating smaller parts. If we were aerospace designers, we might really estimate the weight and position of every part, nut and bolt, but because we are trailer designers, we will only think about 'big parts', like whole bodies or axles. So we're going to make some approximations - the only question is how big will our approximations be? Let's start with the simplest and work towards the complicated.
|

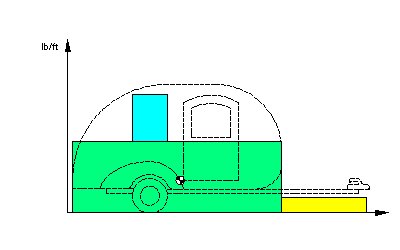

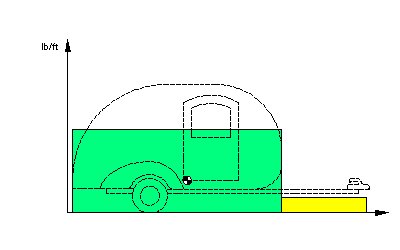

Basic Case The diagram on the right is a weight distribution - the coloured boxes show the assumed weight per foot of trailer at each position along its length.
In this simplest case, we assume that all the trailer within its body length has a constant weight per foot (the green box) while the tongue has a lower weight per foot (the yellow box).
If we assume the weight per foot in each box is constant, we automatically know where the centre of gravity of each box is - right in the middle of its length. |
 |
|
Axle Weight The assumption that the body's weight per foot is constant is fairly reasonable with one exception - the weight of the 'axle' (that is, the suspension, axle tube, wheels and tyres).
This is quite a big percentage of the trailer weight and it's concentrated in one place, so it is sensible to estimate it separately.
The blue box shows the concentrated weight of the axle. Note that the weight per foot of the rest of the body length (the green box) has been reduced, since it no longer contains the weight of the 'axle'. |
 |
|

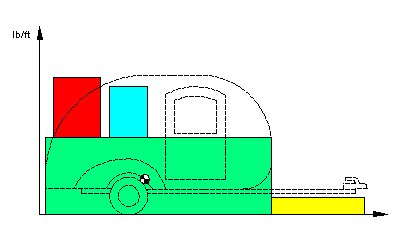

Galley Weight Depending on the use to which we will put our trailer, we may be putting quite a bit of weight into the galley (kitchen) and this: things like loaded coolers, tinned goods and water tanks can all be quite significant weights on their own - add them together and they will alter the balance of the trailer quite a bit.
So it would be sensible to include a separate estimate for the weight of galley equipment and stores, the red box in the diagram.
If necessary, we could use another separate weight to account for any unusual feature of our trailer design. For example if we want to have a tongue box carrying one or two batteries, that will certainly affect the trailer balance and we could include it as another extra weight. |
 |
|

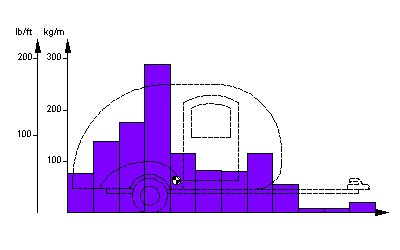

Detailed Analysis If we take the aircraft designers approach and estimate the weight and position of every part of the trailer, we can will get the most accurate estimate of the centre of gravity.
This diagram shows the result of just such an estimate for my Superleggera design (without any extra galley weight).
If the same weight data is used in the 'Axle Weight' model above, it produces an estimate for the centre of gravity which is 16mm (5/8in) different from the detailed analysis result. That's an error of well under 1% of body length, so that seems a decent result.
If you would like to know how to do a detailed weight estimate, go here. |
 |
Part 3
Calculating the Centre of GravityOnce we know the estimated weight distribution, we need to calculate the centre of gravity of the whole trailer. We will use the simplest case as an example.
|

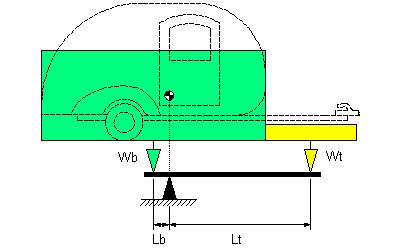

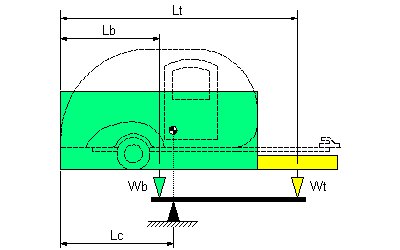

Here we have the trailer balanced on a see-saw (teeter-totter) so that it doesn't tip either way - the centre of the see-saw is right under the centre of gravity of the whole trailer.
The trailer will balance when the effect of the main weight W1 trying to rotate the see-saw anti-clockwise is equal to the effect of the tongue weight W2 trying to rotate the see-saw clockwise, so they cancel each other out.
The rotating effect of these weights (their 'moment') is their weight times their distance from the point of rotation (the 'lever') - so a 5lb weight at the end of a 1ft lever has the same moment as a 1lb weight at the end of a 5ft lever - both produce a moment of 5 ft-lb.
So the moment of the body weight (Wb x Lb) must be equal to the moment of the tongue weight (Wt x Lt), so that gives us this formula: |
 |
|||
| Wb x Lb = Wt x Lt | or | Lb / Lt = Wt / Wb | ||
 |
Now, calculating moments relative to the centre of gravity isn't easy if we haven't yet worked out where the centre of gravity is. But, curiously, moments can be calculated about any point and they will still give the same result.
So if we take moments about the back end of the trailer, as in the diagram on the left, we know that the combined effect of the two weights Wb and Wt must be the same as all the weight concentrated at the trailer's centre of gravity. So that gives us another equation:
(Wb + Wt) x Lc = (Wb x Lb) + (Wt x Lt)
Now this is exactly what we need - because Lc is the answer we're looking for. We can apply this same method to many more weights than just the two in this example, and that is what the spreadsheets do. |
|||
Part 4
Determining the Load on the Wheels and Hitch|

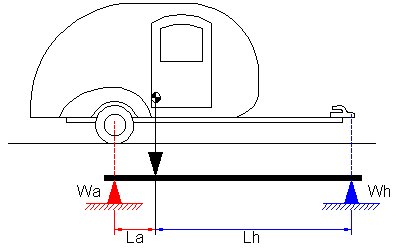

So the moment of the weight on the axle (Wa x La) must be equal to the moment of the weight on the hitch (Wh x Lh), so that gives us this formula: |
 |
||
| Wa x La = Wh x Lh | or | La / Lh = Wh / Wa | |
| You can check the logic of this by putting the trailer's centre of gravity directly over the axle - then La is zero, so Wh is zero - ie, there is no load on the hitch, which is what you expect. | |||
Part 5
Below you can download an Excel spreadsheet that will calculate the hitch weight of your trailer design, working from data that you provide.
But please note that the spreadsheet cannot estimate the weight of your trailer - you have to do that for yourself! However it will let you work with just actual dimensions and weights expressed as a percentage of the total trailer weight.
The spreadsheet allows the following weights:
- a main body weight;
- a tongue weight;
- an axle weight (ie, wheels, axle, suspension, etc);
- up to three extra weights for galley weights, etc, which can be at any position.
|
|
To make it easier to do initial estimating, the spreadsheet uses a 'basic trailer weight' - this is the total of the body, tongue and axle weights (but does not include any of the extra weights). The tongue and axle weights are input as percentages of the basic trailer weight and, if you don't have any better data, you can use these default values which are already in the spreadsheet:
- tongue weight = 5% of basic trailer weight;
- axle weight = 12% of basic trailer weight.
These percentages are suggestions - satisfy yourself that they are appropriate before you use them.

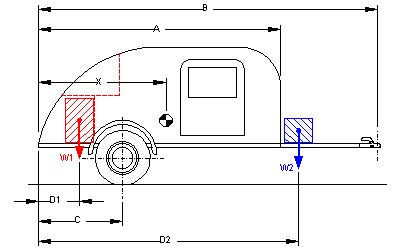

You can use from zero to three extra weights. In the diagram above, extra weight 1 is representing weight in the galley, extra weight 2 is representing a tongue box and extra weight 3 is not shown - the possibility to use a third extra weight has been included because if it isn't someone is bound to ask for it! For each one, you need the extra weight in pounds and its distance from the rear of the trailer in inches.
The diagram above shows where the measurements are taken from. If you prefer to use metric units (eg, kg and cm or mm), you can use the spreadsheet just as it is, but you may want to alter the number of decimal places in some cells.
|
Excel trailer balance spreadsheet (in a Zip file) Download |
View spreadsheet as .pdf file View |
To make your own version of this spreadsheet in different software, view and save this .pdf file containing formulae for all calculated cells View |
Part 6
Trailer Axle Position 'Rules of Thumb'Are all those numbers above just unnecessarily complicated? You just want an answer, not to have to take an exam? Here are some really simple 'rules of thumb' that you can apply:
Axle Position, % of body length (C/A in diagram above) |
Reasons to pick this value: |
|
40% (eg, 38" from back for 8ft body) |
A reasonable compromise value for an average teardrop. |
|
45% (eg, 43" from back for 8ft body) |
Tongue box. Light or no galley. Minimum safe hitch weight wanted. |
|
35% (eg, 34" from back for 8ft body) |
Well-equipped/heavy galley. Long tongue. Heavier hitch weight wanted. |
Please remember that picking the right axle position does not mean that the trailer can be loaded without any thought - how it is loaded will determine the hitch weight, as much as where the axle is.
