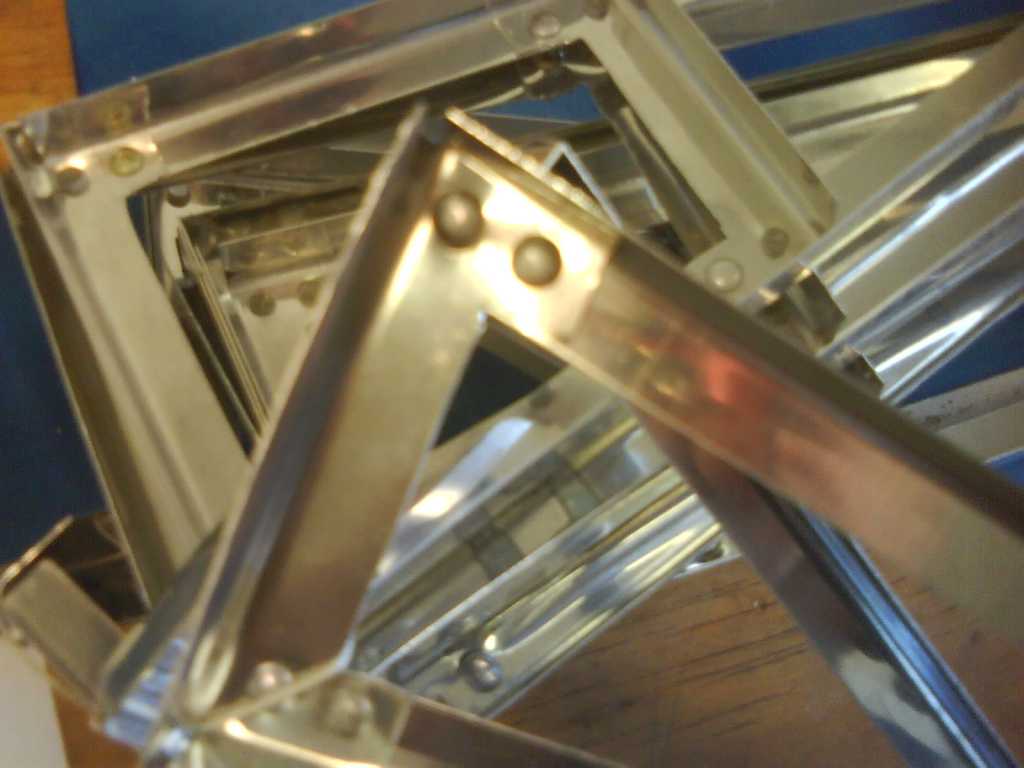

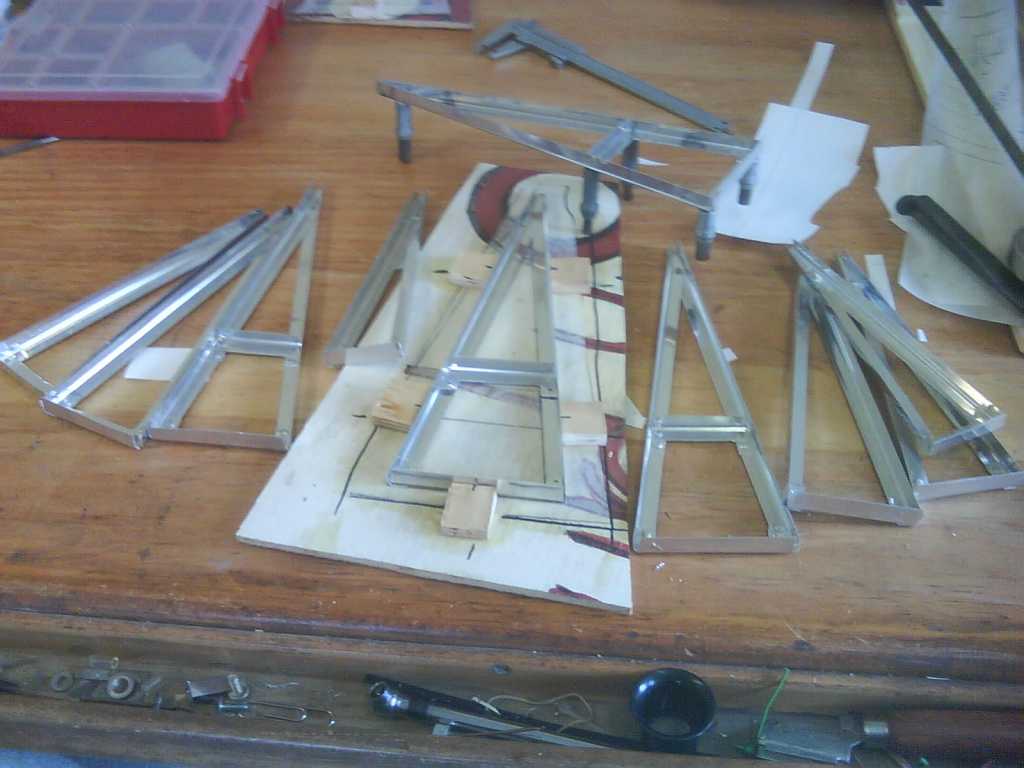

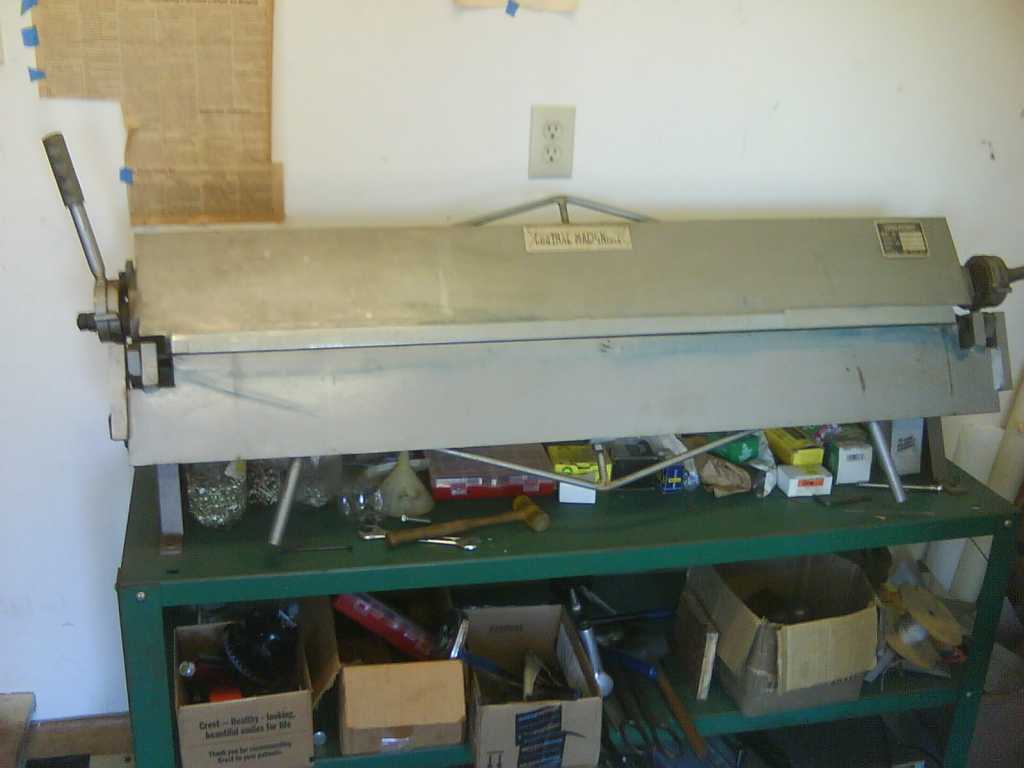

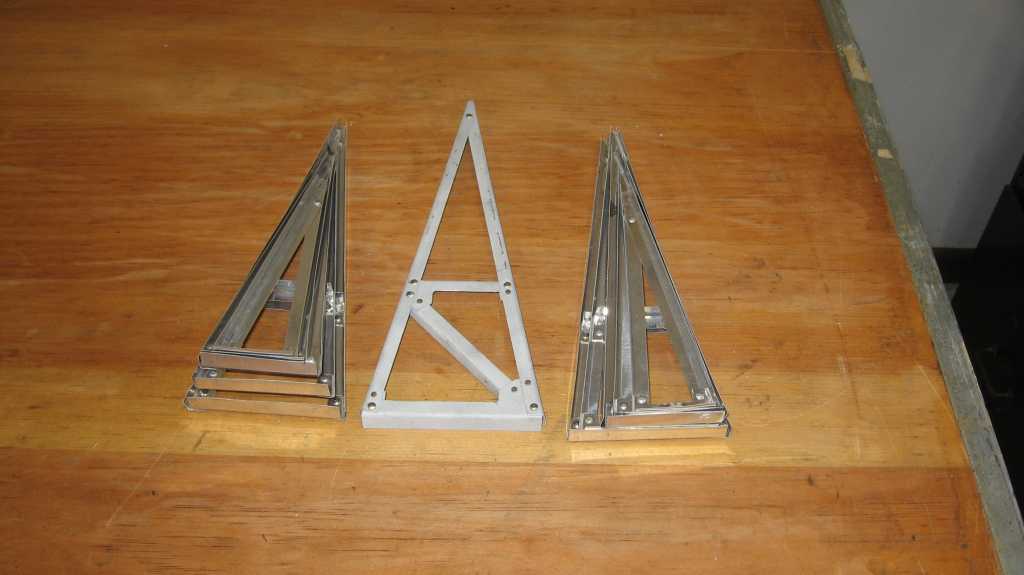

The material is .025 and .016 2024-T3 One needs a bending break to make the angles. I use standard aircraft 3/32 AD rivets. I do not like pop rivets, they are expensive and not as strong. I can not recommend this brand of Chinese bending break, I had to do extensive work (fabrication) to make it bend correctly. I did not pay much for it though.

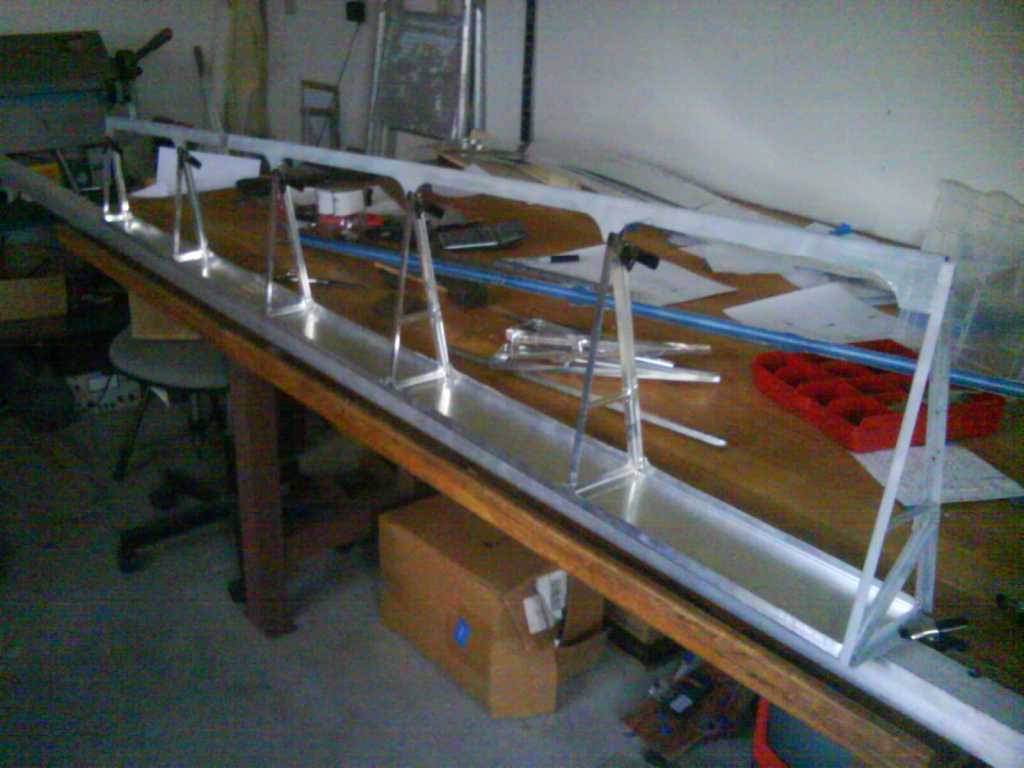

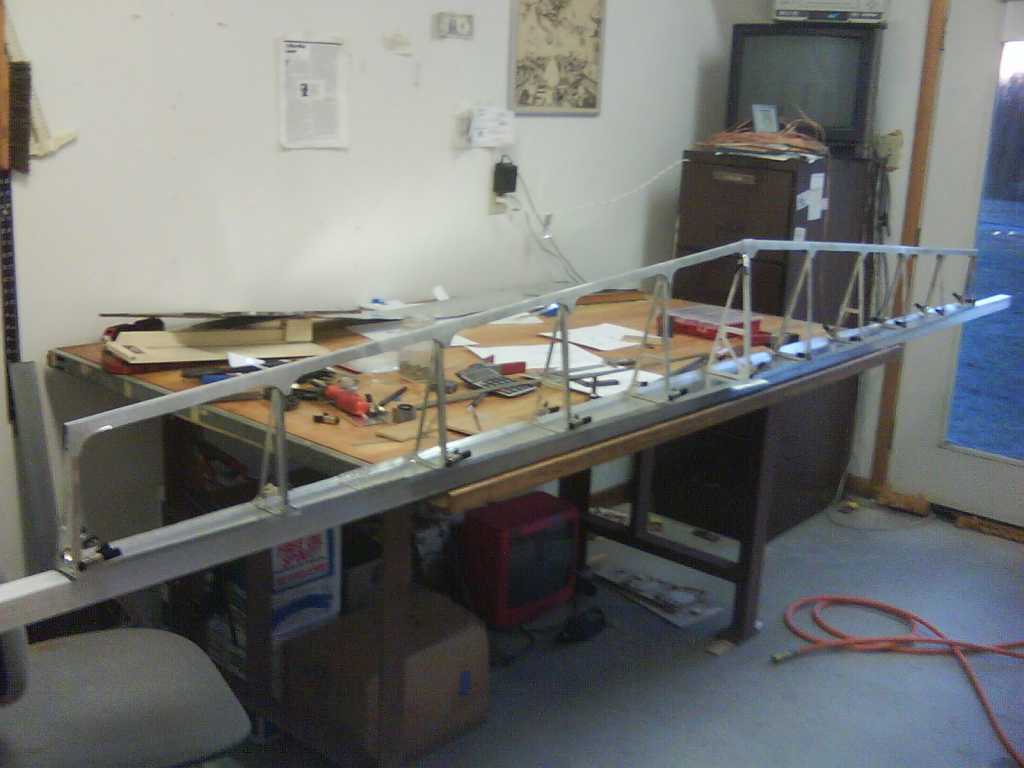

other 1/2 spar done,....2 days to cut, form and rivet. Sunday, will splice the two halves. Going slow sort of making up the assembly order as I go. The 1 1/2 x 3/16 aluminum angle it is sitting on is my flat surface for now, works well and is very flat.
