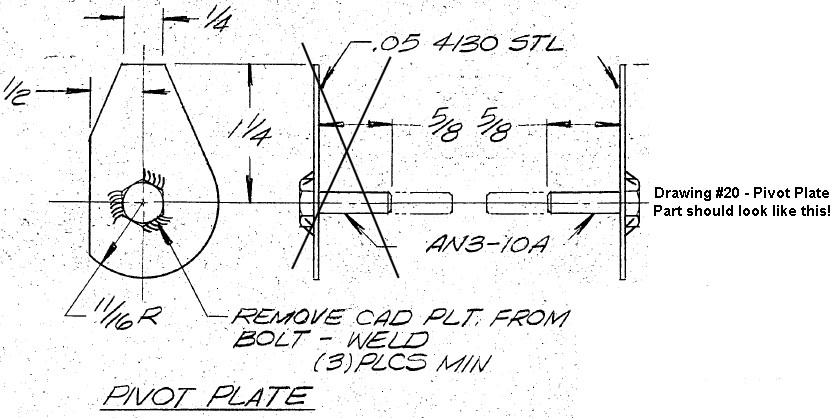

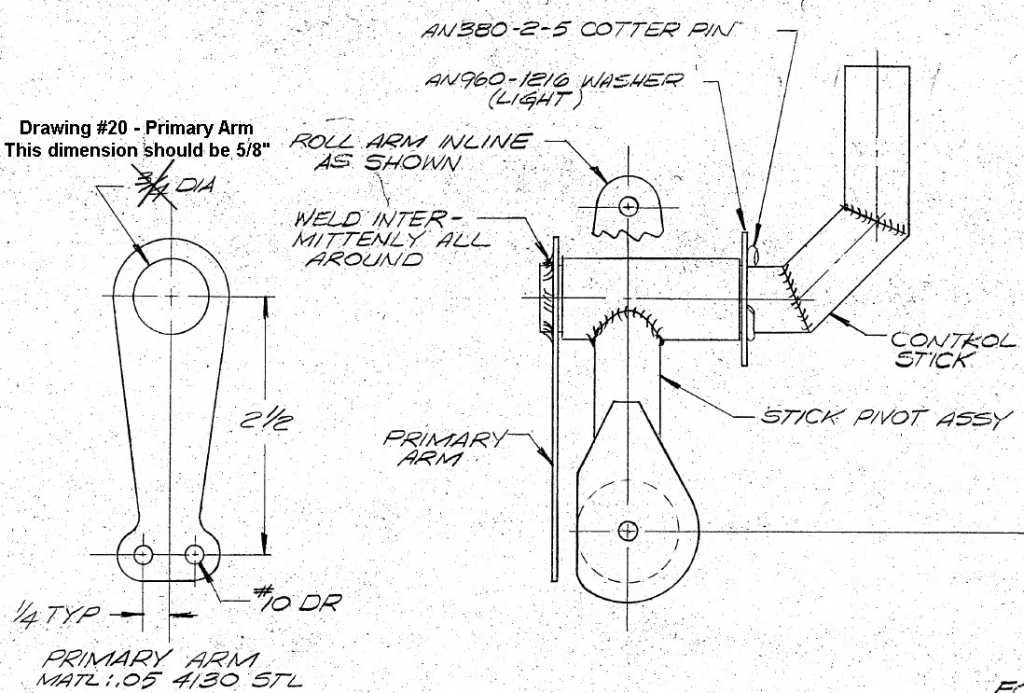

One of the dimensions of the rudder spar on drawing #4 is incorrect.
Drawing #4 shows the width of the top end of the spar to be 2 1/8", which is too wide.
It should read 1 3/4".
All the other dimensions on the drawing are correct.
A quick question...
I am currently assembling my rudder (gluing the hinges, hinge supports, D-section formers, etc.) to the rudder spar and have just discovered that four of the six triangular ribs are are not the same width as the spar where they are supposed to be bonded to it.
I have double checked my spar and its physical dimensions are exactly as specified in the plans. The ribs were made using the plans as a template and my ribs match the plans with better than 1mm accuracy but I am at a loss as to why there is a growing disparity in the with of the ribs as you go up the spar:
Rib #6 is particularly bad - the spar is 54mm (2 1/8") wide at the top but the width of the rib where it joins the spar is 44.5mm (1 3/4") - there's no way this can be a scaling error on my printed plans! What am I missing???
Did you encounter a similar problem or did your ribs match the dimensions of the spar exactly? I've checked the scale of my drawings and it is close enough to the correct scale that this does not account for the error.
If you have a moment could you take a look at drawing #4 and measure off the width (base) of each of the triangular rudder ribs and the width of ribs #5 and #6 where they intersect with the spar?
I'd really appreciate this!
Rick replies: "Yeah, you've discovered one of the many errors in the plans. The drawings show the overall width as 2 1/8 and the space between the rib stringers as being 1 1/4 inch. However the rib stringers are made of 1/4 spruce and 1 1/4 plus 1/4 plus 1/4 equals 1 3/4. I made notes in my plans when I found errors but missed marking this one."
Drawing #3 shows an incorrect dimension for the lower end of the vertical tail fin front spar web. The half-width of the spar web is correctly shown as 2.41" but the full width is incorrectly shown as 2.82". It should read 4.82".
Apologies for the erratic behaviour of the forum software lately - it is making a mess of rendering the posts and is difficult to read.
This appears to be being caused by old system code that contains deprecated commands and syntax no longer used by the latest version of PHP running on the server. I have raised the matter with both the forum and Joomla software developers, but it may take a while to get fixed.
Phil (System Admin)

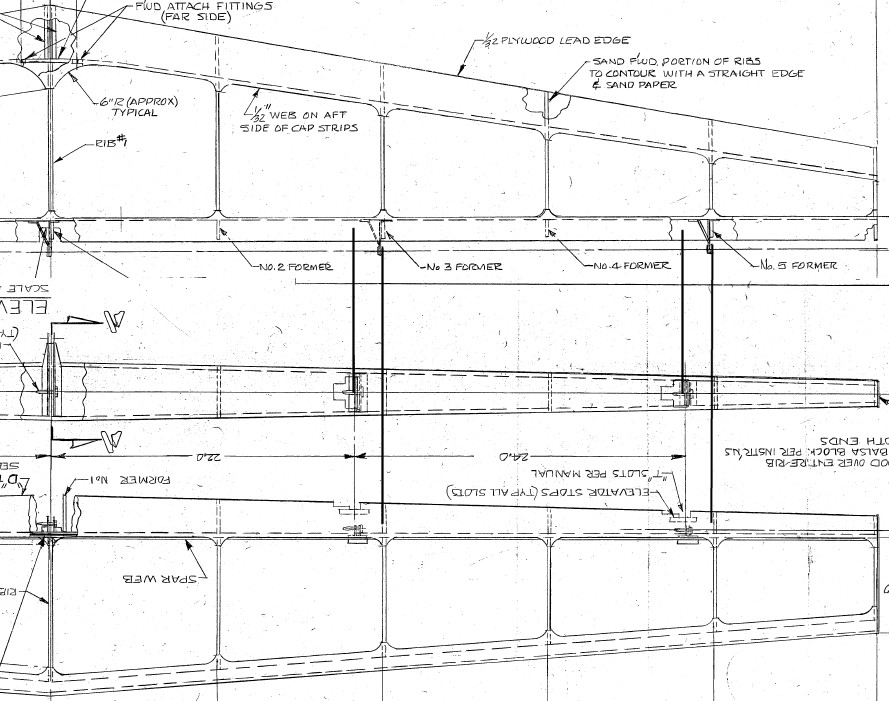

Horizontal Stabiliser Front Spar - Drawing #5 - Incorrect Dimension - (Actually, it *is* correct!)
27 Jan 2015 12:08 #863

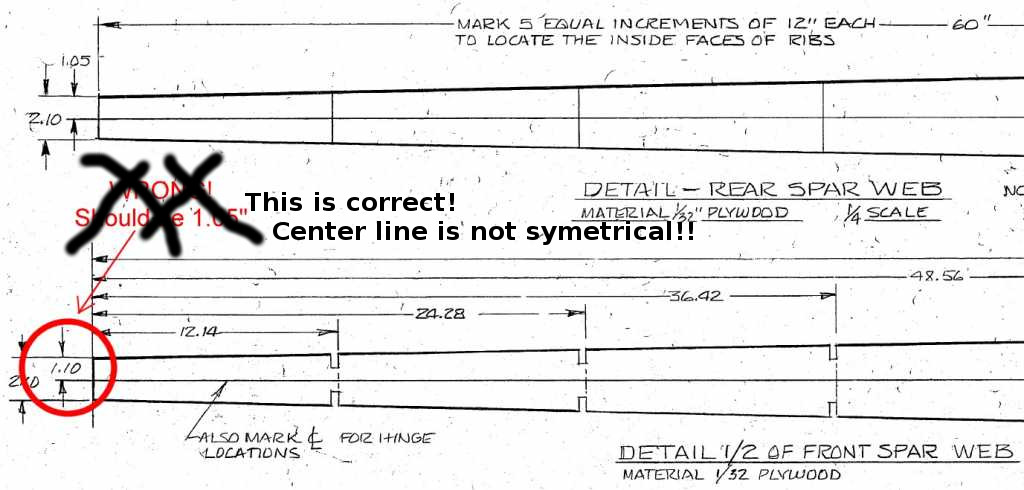

EDIT: My mistake! The drawing does indeed show the correct dimensions for the outer ends of the H-Stab front spar. The 'center line' shown is NOT in the geometrical center of the spar but is indeed offset. The dimension above the line is indeed 1.1" (1 3/32") and just 1" below the line.

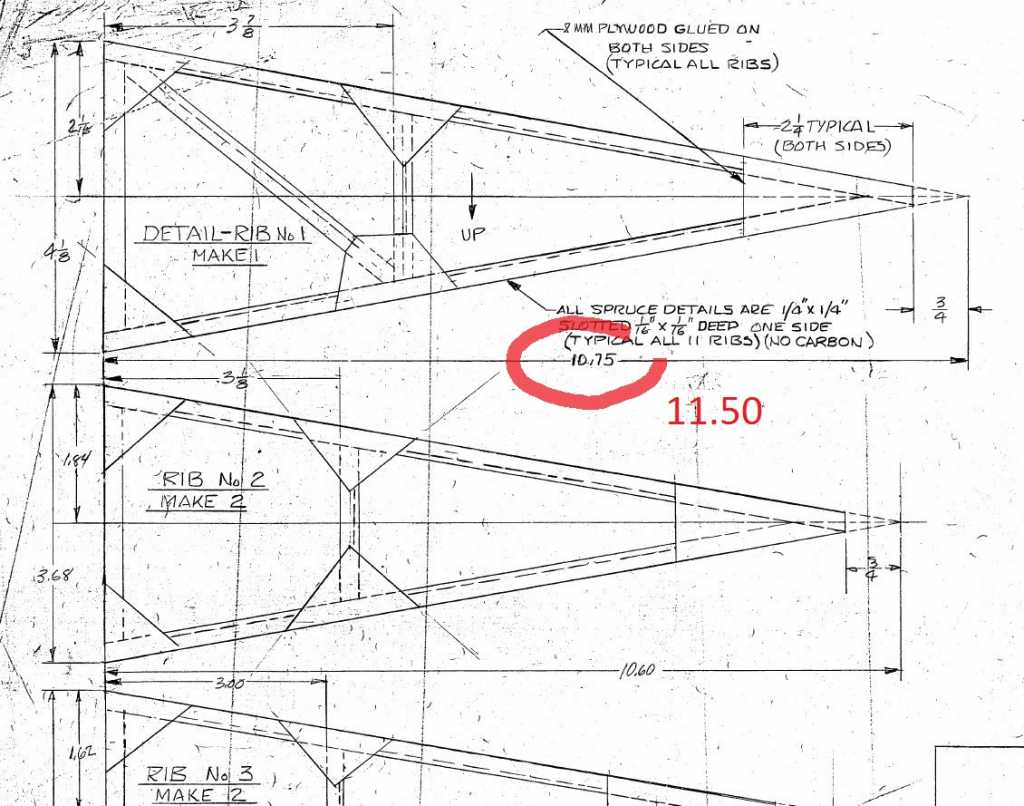

Drawing #5 - The half-width dimension of the horizontal stabiliser front spar is incorrectly shown as 1.10". This should read 1.05".
